# WAMBS Blavaan Tutorial (using Stan)

#### By Laurent Smeets and Rens van de Schoot

#### Last modified: 19 October 2019

In this tutorial you follow the steps of the When-to-Worry-and-How-to-Avoid-the-Misuse-of-Bayesian-Statistics – checklist (the WAMBS-checklist).

We are continuously improving the tutorials so let me know if you discover mistakes, or if you have additional resources I can refer to. The source code is available via Github. If you want to be the first to be informed about updates, follow me onTwitter.

## Preparation

This tutorial expects:

- Installation of Stan and Rtools. For more information please see https://github.com/stan-dev/rstan/wiki/RStan-Getting-Started
- Installation of R packages
`rstan`

,`lavaan`

and`blavaan`

.**This tutorial ony works in Blavaan version 0.3.7 and Lavaan version 0.6.5 and was made using R version 3.6.1**If you obtain any errors, first update your (B)lavaan version. - Basic knowledge of hypothesis testing
- Basic knowledge of correlation and regression
- Basic knowledge of Bayesian inference
- Basic knowledge of coding in R

**WAMBS checklist**–

*When to worry, and how to Avoid the Misuse of Bayesian Statistics*

**To be checked before estimating the model**

- Do you understand the priors?

**To be checked after estimation but before inspecting model results**

- Does the trace-plot exhibit convergence?
- Does convergence remain after doubling the number of iterations?
- Does the posterior distribution histogram have enough information?
- Do the chains exhibit a strong degree of autocorrelation?
- Do the posterior distributions make substantive sense?

**Understanding the exact influence of the priors**

- Do different specification of the multivariate variance priors influence the results?
- Is there a notable effect of the prior when compared with non-informative priors?
- Are the results stable from a sensitivity analysis?
- Is the Bayesian way of interpreting and reporting model results used?

**Example Data**

The data we be use for this exercise is based on a study about predicting PhD-delays (Van de Schoot, Yerkes, Mouw and Sonneveld 2013). The data can be downloaded here. Among many other questions, the researchers asked the Ph.D. recipients how long it took them to finish their Ph.D. thesis (n=333). It appeared that Ph.D. recipients took an average of 59.8 months (five years and four months) to complete their Ph.D. trajectory. The variable B3_difference_extra measures the difference between planned and actual project time in months (mean=9.96, minimum=-31, maximum=91, sd=14.43). For more information on the sample, instruments, methodology and research context we refer the interested reader to the paper.

For the current exercise we are interested in the question whether age (M = 30.7, SD = 4.48, min-max = 26-69) of the Ph.D. recipients is related to a delay in their project.

The relation between completion time and age is expected to be non-linear. This might be due to that at a certain point in your life (i.e., mid thirties), family life takes up more of your time than when you are in your twenties or when you are older.

So, in our model the gap (*B3_difference_extra*) is the dependent variable and age (*E22_Age*) and age\(^2\)(*E22_Age_Squared *) are the predictors. The data can be found in the file `phd-delays.csv`

.

**Question:** Write down the null and alternative hypotheses that represent this question. Which hypothesis do you deem more likely?

**Question:**Write down the null and alternative hypotheses that represent this question. Which hypothesis do you deem more likely?

\(H_0:\) *\(age\) is not related to a delay in the PhD projects.*

\(H_1:\) *\(age\) is related to a delay in the PhD projects.*

\(H_0:\) *\(age^2\) is not related to a delay in the PhD projects.*

\(H_1:\) *\(age^2\) is related to a delay in the PhD projects.*

## Preparation – Importing and Exploring Data

```
# if you dont have these packages installed yet, please use the install.packages("package_name") command.
library(rstan)
library(blavaan)
library(psych) #to get some extended summary statistics
library(tidyverse) # needed for data manipulation and plotting
library(coda)
```

You can find the data in the file `phd-delays.csv`

, which contains all variables that you need for this analysis. Although it is a .csv-file, you can directly load it into R using the following syntax:

```
#read in data
dataPHD <- read.csv2(file="phd-delays.csv")
colnames(dataPHD) <- c("diff", "child", "sex","age","age2")
```

Alternatively, you can directly download them from GitHub into your R work space using the following command:

```
dataPHD <- read.csv2(file="https://raw.githubusercontent.com/LaurentSmeets/Tutorials/master/Blavaan/phd-delays.csv")
colnames(dataPHD) <- c("diff", "child", "sex","age","age2")
```

GitHub is a platform that allows researchers and developers to share code, software and research and to collaborate on projects (see https://github.com/)

Once you loaded in your data, it is advisable to check whether your data import worked well. Therefore, first have a look at the summary statistics of your data. you can do this by using the `describe()`

function.

**Question:** Have all your data been loaded in correctly? That is, do all data points substantively make sense? If you are unsure, go back to the .csv-file to inspect the raw data.

**Question:**Have all your data been loaded in correctly? That is, do all data points substantively make sense? If you are unsure, go back to the .csv-file to inspect the raw data.

`describe(dataPHD)`

```
## vars n mean sd median trimmed mad min max range skew
## diff 1 333 9.97 14.43 5 6.91 7.41 -31 91 122 2.21
## child 2 333 0.18 0.38 0 0.10 0.00 0 1 1 1.66
## sex 3 333 0.52 0.50 1 0.52 0.00 0 1 1 -0.08
## age 4 333 31.68 6.86 30 30.39 2.97 26 80 54 4.45
## age2 5 333 1050.22 656.39 900 928.29 171.98 676 6400 5724 6.03
## kurtosis se
## diff 5.92 0.79
## child 0.75 0.02
## sex -2.00 0.03
## age 24.99 0.38
## age2 42.21 35.97
```

*The descriptive statistics make sense:*

*diff: Mean (9.97), SE (0.79)*

*age: Mean (31.68), SE (0.38)*

*age2: Mean (1050.22), SE (35.97)*

**Step 1: Do you understand the priors?**

### 1.Do you understand the priors?

Before actually looking at the data we first need to think about the prior distributions and hyperparameters for our model. For the current model, there are four priors:

- the intercept
- the two regression parameters (\(\beta_1\) for the relation with AGE and \(\beta_2\) for the relation with AGE2)
- the residual variance (\(\in\))

We first need to determine which distribution to use for the priors. Let’s use for the

- intercept a normal prior with \(\mathcal{N}(\mu_0, \sigma^{2}_{0})\), where \(\mu_0\) is the prior mean of the distribution and \(\sigma^{2}_{0}\) is the variance parameter
- \(\beta_1\) a normal prior with \(\mathcal{N}(\mu_1, \sigma^{2}_{1})\)
- \(\beta_2\) a normal prior with \(\mathcal{N}(\mu_2, \sigma^{2}_{2})\)
- \(\in\) an Inverse Gamma distribution with \(IG(\kappa_0,\theta_0)\), where \(\kappa_0\) is the shape parameter of the distribution and \(\theta_0\) the rate parameter

Next, we need to specify actual values for the hyperparameters of the prior distributions. Let’s say we found a previous study and based on this study the following hyperparameters can be specified:

- intercept \(\sim \mathcal{N}(-35, 20)\)
- \(\beta_1 \sim \mathcal{N}(.8, 5)\)
- \(\beta_2 \sim \mathcal{N}(0, 10)\)
- \(\in \sim IG(.5, .5)\) This is an uninformative prior for the residual variance, which has been found to perform well in simulation studies.

It is a good idea to plot these distribution to see how they look. To do so, one easy way is to sample a lot of values from one of these distributions and make a density plot out of it, see the code below. Replace the ‘XX’ with the values of the hyperparameters

```
par(mfrow = c(2,2))
plot(density(rnorm(n = 100000, mean = XX, sd = sqrt(XX))), main = "prior intercept") # the rnorm function uses the standard devation instead of variance, that is why we use the sqrt
plot(density(rnorm(n = 100000, mean = XX, sd = sqrt(XX))), main = "effect Age")
plot(density(rnorm(n = 100000, mean = XX, sd = sqrt(XX))), main = "effect Age^2")
```

```
par(mfrow = c(2,2))
plot(density(rnorm(n = 100000, mean = -35, sd = sqrt(20))), main = "prior intercept") # the rnorm function uses the standard devation instead of variance, that is why we use the sqrt
plot(density(rnorm(n = 100000, mean = .8, sd = sqrt(5))), main = "effect Age")
plot(density(rnorm(n = 100000, mean = 0, sd = sqrt(10))), main = "effect Age^2")
```

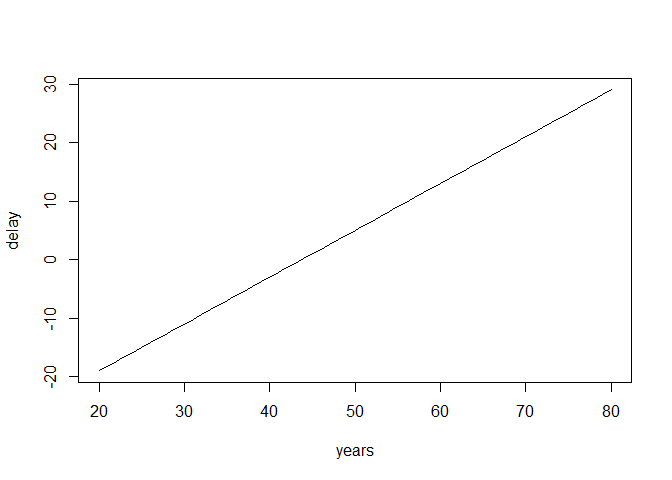

We can also plot what the our expected delay would be (like we did in the Blavaan regression assignment) given these priors. With these priors the regression formula would be: \(delay=-35+ .8*age + 0*age^2\). These are just the means of the priors and do not yet qualify the different levels of uncertainty. Replace the ‘XX’ in the following code with the prior means.

```
years <- 20:80
delay <- XX + XX*years + XX*years^2
plot(years, delay, type = "l")
```

```
years <- 20:80
delay <- -35 + .8*years + 0*years^2
plot(years, delay, type= "l")
```

**Step 2: Run the model and check for convergence**

Specify the regression model you want to analyze and run the regression with the `blavaan()`

function. The priors for the intercept, the regression coefficients and the variance are specified in the regression model below.

To run a multiple regression with Blavaan, you first specify the model, then fit the model and finally acquire the summary (similar to the frequentist model in Lavaan). The model is specified as follows:

- A dependent variable we want to predict.
- A “~”, that we use to indicate that we now give the other variables of interest. (comparable to the ‘=’ of the regression equation).
- The different independent variables separated by the summation symbol ‘+’.
- We insert that the dependent variable has a variance and that we want an intercept.
- Finally, we can use the
`prior()`

command to specify any prior we want. Be careful, Stan uses standard deviations instead of variance in the normal distribution. The standard deviations is the square root of the variance, so a variance of 5 corresponds to a standard deviation of 2.24 and a variance of 10 corresponds to a standard deviation of 3.16. Furthermore, Blavaan by default also places priors on the precision instead of variance for the residual variance. This means that we can use the fact that a gamma distribution on the precision is the same as an inverse gamma on the variance.

For more information on the basics of (b)lavaan and how to specify other priors, see the Lavaan website and Blavaan website.

```
model.regression <- '#the regression model
diff ~ prior("normal(0.8, 2.24)")*age + prior("normal(0, 3.16)")*age2
#show that dependent variable has variance
diff ~~ prior("gamma(.5, .5)")*diff #we use a gamma instead of inverse gamma distribution, because the prior is placed on the precision and not the variance.
#we want to have an intercept
diff ~ prior("normal(-35, 4.47)")*1'
```

### 2. Does the trace-plot exhibit convergence?

First we run the anlysis with only a short burnin period of a 100 samples and then take another 500 samples. In addition, Blavaan needs an adaptation period, which is by default a 1000 samples. We do not change this for this example.

```
fit.bayesfewsample <- blavaan(model = model.regression,
data = dataPHD, test = "none",
target = "stan", burnin = 100,
sample = 500, seed = 12345,
bcontrol = list(cores = 4))
posteriors_fewsamples <- blavInspect(fit.bayesfewsample, what="mcmc")
# the test="none" input stops the calculations of some posterior checks, we do not need at this moment and speeds up the process.
# the seed command is simply to guarantee the same exact result when running the sampler multiple times. You do not have to set this.
```

Now we can plot the trace plots by using `plot(fit.bayesfewsample, pars = 1:4, plot.type = "trace")`

.

`plot(fit.bayesfewsample, pars = 1:4, plot.type = "trace")`

It seems like the trace (caterpillar) plots are not neatly converged into one each other (we ideally want one fat caterpillar, like the one for *diff~~diff* \ `Psi_var[1]`

). This indicates we need more samples.

We can check if the chains convergenced by having a look at the convergence diagnostics. Two of these diagnostics of interest include the Gelman and Rubin diagnostic and the Geweke diagnostic.

- The Gelman-Rubin Diagnostic shows the PSRF values (using the within and between chain variability). You should look at the Upper CI/Upper limit, which are all should be close to 1. If they aren’t close to 1, you should use more iterations. Note: The Gelman and Rubin diagnostic is also automatically given in the summary of blavaan under the column PSRF.
- The Geweke Diagnostic shows the z-scores for a test of equality of means between the first and last parts of each chain, which should be <1.96. A separate statistic is calculated for each variable in each chain. In this way it check whether a chain has stabalized. If this is not the case, you should increase the number of iterations. In the plots you should check how often values exceed the boundary lines of the z-scores. Scores above 1.96 or below -1.96 mean that the two portions of the chain significantly differ and full chain convergence was not obtained.

To obtain the Gelman and Rubin diagnostic we first create a list of mcmc values `mcmc.list <- posteriors_fewsamples`

and than obtain the diagnostics use `gelman.diag(mcmc.list)`

, and for the plots use `gelman.plot(mcmc.list)`

.

```
mcmc.list <- posteriors_fewsamples
gelman.diag(mcmc.list)
```

```
## Potential scale reduction factors:
##
## Point est. Upper C.I.
## bet_sign[1] 6.94 13.47
## bet_sign[2] 3.63 6.72
## Psi_var[1] 1.02 1.07
## Alpha_free[1] 9.28 19.31
##
## Multivariate psrf
##
## 7
```

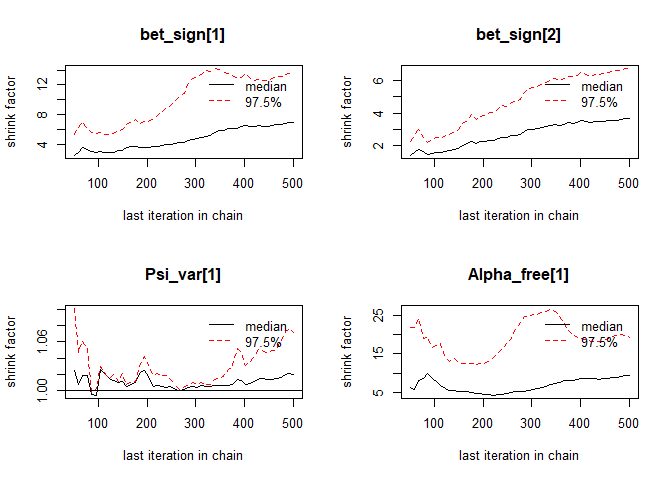

`gelman.plot(mcmc.list)`

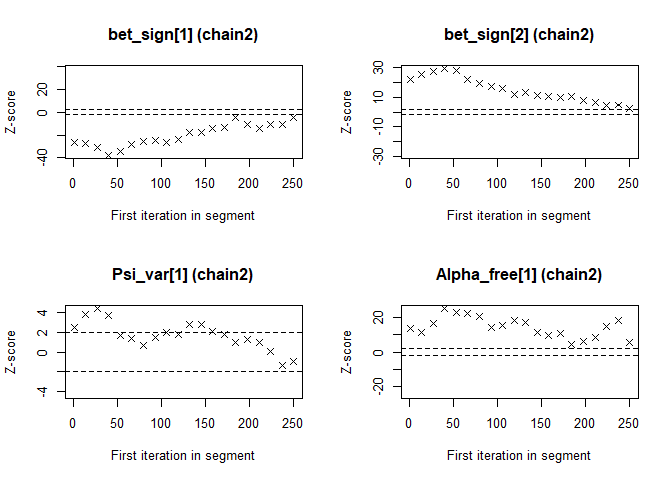

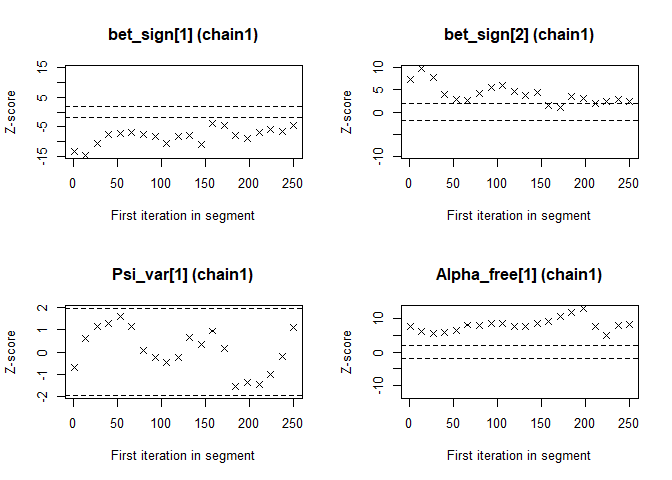

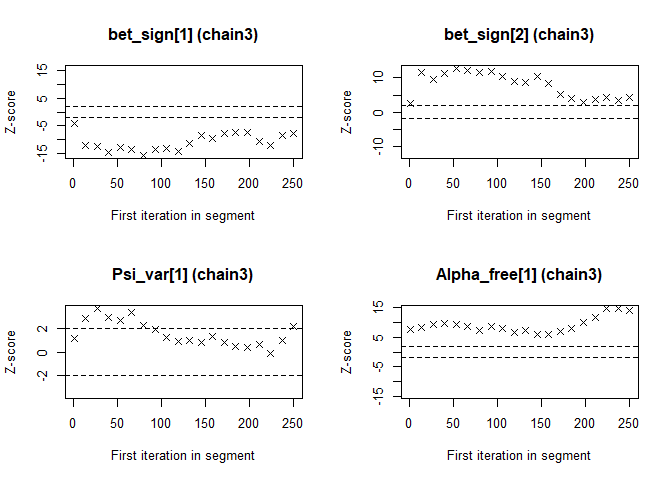

To obtain the Geweke diagnostic use `geweke.diag(mcmc.list)`

and `geweke.plot(mcmc.list)`

.

`geweke.plot(mcmc.list)`

These statistics confirm that the chains have not converged. Therefore, we run the same analysis with more samples by increasing the number of iterations `burnin = 2000, sample = 5000`

. Obtain the trace plots and convergence statistics again.

```
fit.bayes <- blavaan(model.regression, data = dataPHD,
n.chains = 3, burnin = 2000, sample = 5000,
target = "stan", test = "none", seed = 123,
bcontrol = list(cores = 4))
posteriors_fit.bayes <- blavInspect(fit.bayes, what="mcmc")
```

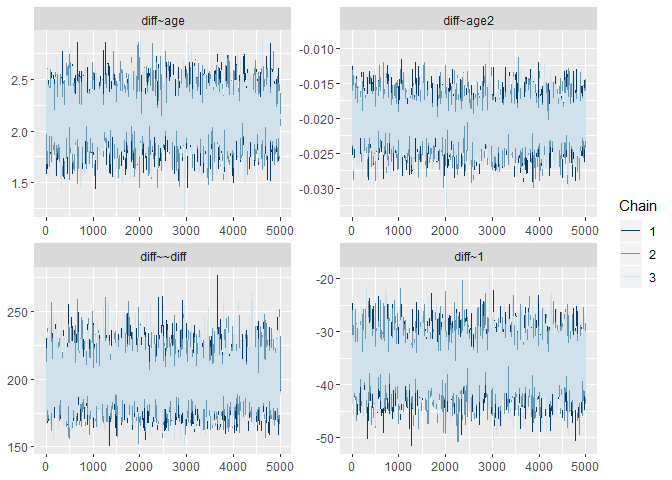

`plot(fit.bayes, pars = 1:4, plot.type = "trace")`

```
mcmc.list <- posteriors_fit.bayes
gelman.diag(mcmc.list)
```

```
## Potential scale reduction factors:
##
## Point est. Upper C.I.
## bet_sign[1] 1 1
## bet_sign[2] 1 1
## Psi_var[1] 1 1
## Alpha_free[1] 1 1
##
## Multivariate psrf
##
## 1
```

`gelman.plot(mcmc.list)`

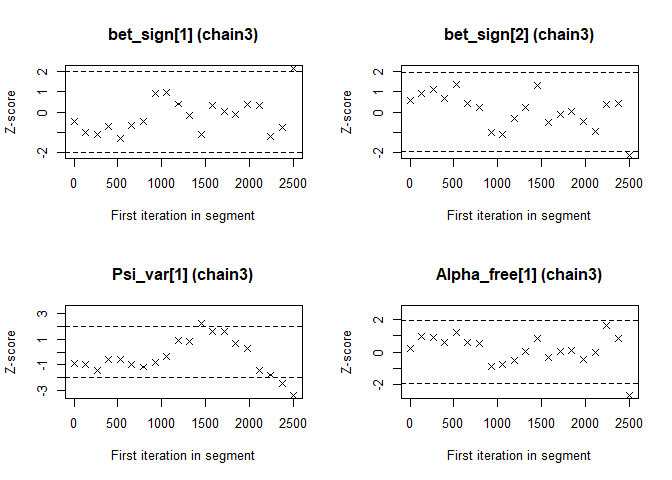

`geweke.plot(mcmc.list)`

Now we see that the Gelman and Rubin diagnostic (PRSF) is close to 1 for all parameters and the the Geweke diagnostic is not > 1.96.

### 3. Does convergence remain after doubling the number of iterations?

As is recommended in the WAMBS checklist, we double the amount of iterations to check for local convergence.

```
fit.bayesdouble <- blavaan(model.regression, data = dataPHD,
n.chains = 3, burnin = 4000, sample = 10000,
target = "stan", test = "none", seed = 123,
bcontrol = list(cores = 4))
```

You should again have a look at the above-mentioned convergence statistics, but we can also compute the relative bias to inspect if doubling the number of iterations influences the posterior parameter estimates (\(bias= 100*\frac{(model \; with \; double \; iteration \; – \; initial \; converged \; model )}{initial \; converged \; model}\)). In order to preserve clarity we just calculate the bias of the two regression coefficients.

You should combine the relative bias in combination with substantive knowledge about the metric of the parameter of interest to determine when levels of relative deviation are negligible or problematic. For example, with a regression coefficient of 0.001, a 5% relative deviation level might not be substantively relevant. However, with an intercept parameter of 50, a 10% relative deviation level might be quite meaningful. The specific level of relative deviation should be interpreted in the substantive context of the model. Some examples of interpretations are:

- if relative deviation is < |5|%, then do not worry;
- if relative deviation > |5|%, then rerun with 4x nr of iterations.

**Question:** calculate the relative bias. Are you satisfied with number of iterations, or do you want to re-run the model with even more iterations?

To get the relative bias simply save the means of the regression coefficients for the two different analyses and compute the bias.

```
estimates <- blavInspect(fit.bayes, what = "postmean")[1:2]
estimatesdoubleiter <- blavInspect(fit.bayesdouble, what = "postmean")[1:2]
round(100*((estimatesdoubleiter - estimates)/estimates), 2)
```

```
## diff~age diff~age2
## 0.04 0.02
```

*The relative bias is small enough (<5%) not worry about it.*

### 4. Does the posterior distribution histogram have enough information?

By having a look at the posterior distribution histogram `plot(fit.bayes, pars=1:4, plot.type="hist")`

, we can check if it has enough information.

**Question:** What can you conclude about distribution histograms?

```
par(mfrow = c(2,2))
plot(fit.bayes, pars = 1:4, plot.type = "hist")
```

`## `stat_bin()` using `bins = 30`. Pick better value with `binwidth`.`

*The histograms look smooth and have no gaps or other abnormalities. Based on this, adding more iterations is not necessary. However, if you arenot satisfied, you can improve the number of iterations again. Posterior distributions do not have to be symmetrical, but in this example they seem to be.*

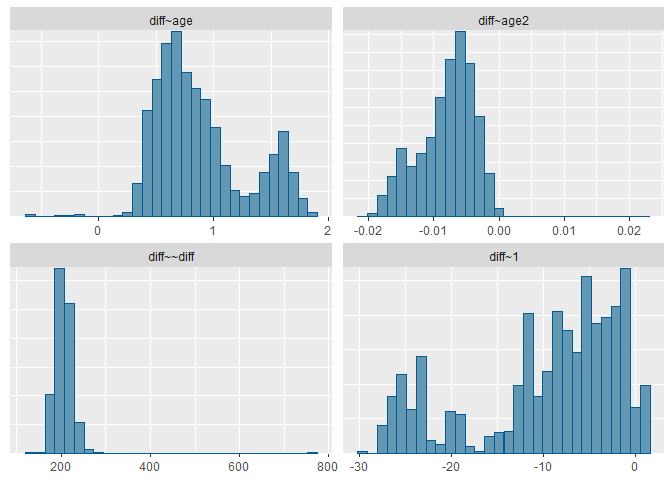

If we compare this with histograms based on the first analysis (with very few iterations), this difference becomes clear:

`plot(fit.bayesfewsample, pars = 1:4, plot.type = "hist")`

`## `stat_bin()` using `bins = 30`. Pick better value with `binwidth`.`

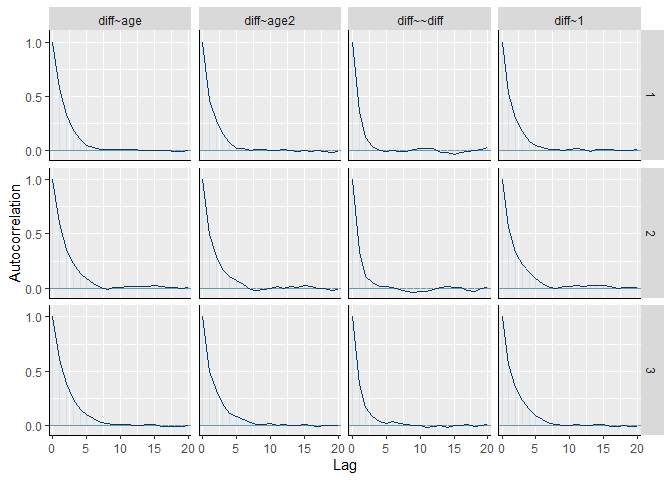

### 5. Do the chains exhibit a strong degree of autocorrelation?

To obtain information about autocorrelation the following syntax can be used:

```
par(mfrow = c(2,2))
plot(fit.bayes, pars = 1:4, plot.type = "acf", col = 'blue')
```

```
par(mfrow = c(2,2))
plot(fit.bayes, pars = 1:4, plot.type = "acf", col = 'blue')
```

`## Warning: The following arguments were unrecognized and ignored: col`

**Question:** What can you conclude about these autocorrelation plots?

*These results show that autocorrelation is quite stong after a few lags. This means it is important to make sure we ran the analysis with a lot of samples, because with a high autocorrelation it will take longer until the whole parameter space has been identified. For more informtation on autocorrelation check this paper.*

### 6. Do the posterior distributions make substantive sense?

We plot the posterior distributions and see if they are unimodel (one peak), if they are clearly centered around one value, if they give a realistic estimate and if they make substantive sense compared to our prior beliefs (priors). Here we plot the posteriors of the regression coefficients. If you want you can also plot the mean and the 95% Posterior HPD Intervals.

```
par(mfrow = c(2,2))
plot(fit.bayes, pars = 1:4, plot.type = "dens", col = 'blue')
```

```
par(mfrow = c(2,2))
plot(fit.bayes, pars = 1:4, plot.type = "dens", col = 'blue')
```

`## Warning: The following arguments were unrecognized and ignored: col`

**Question:** What is your conclusion; do the posterior distributions make sense?

*Yes, we see a clear negative intercept, which makes sense since a value of age = 0 for Ph.D is impossible. We also have have plausible ranges of values for the regression coefficients and a positive variance.*

**step 3: Understanding the exact influence of the priors**

First we check the results of the analysis with the priors we used so far using `summary(fit.bayes)`

.

`summary(fit.bayes)`

```
## blavaan (0.3-7) results of 5000 samples after 2000 adapt/burnin iterations
##
## Number of observations 333
##
## Number of missing patterns 1
##
## Statistic
## Value
##
## Regressions:
## Estimate Post.SD HPD.025 HPD.975 PSRF
## diff ~
## age 2.142 0.210 1.726 2.553 1.001
## age2 -0.021 0.003 -0.026 -0.015 1.001
## Prior
##
## normal(0.8,2.24)
## normal(0,3.16)
##
## Intercepts:
## Estimate Post.SD HPD.025 HPD.975 PSRF
## .diff -36.188 4.203 -44.431 -27.916 1.001
## Prior
## normal(-35,4.47)
##
## Variances:
## Estimate Post.SD HPD.025 HPD.975 PSRF
## .diff 198.712 15.528 170.354 231.461 1.000
## Prior
## gamma(.5,.5)
```

### 7. Do different specification of the variance priors influence the results?

To understand how the prior on the residual variance impacts the posterior results, we compare the previous model with a model where different hyperparameters for the (Inverse) Gamma distribution are specified. To see what the priors in Blavaan are we can use the `dpriors(target = "stan")`

command.

`dpriors(target = "stan")`

```
## nu alpha lambda beta
## "normal(0,32)" "normal(0,10)" "normal(0,10)" "normal(0,10)"
## theta psi rho ibpsi
## "gamma(1,.5)[sd]" "gamma(1,.5)[sd]" "beta(1,1)" "wishart(3,iden)"
## tau delta
## "normal(0,10^.5)" "gamma(1,.5)[sd]"
```

We see that the observed variable precision parameter `itheta`

has a default prior of gamma(1,.5). By default prior distributions are placed on precisions instead of variances in Blavaan, so that the letter i in itheta stands for inverse. We change the hyperparameters in the regression model that was specified in step 2 using the `prior()`

command. After rerunning the analysis we can then calculate a bias to see impact. So far we have used the –\(\in \sim IG(.5, .5)\) prior, but we can also use the –\(\in \sim IG(.01, .01)\) prior and see if doing so makes a difference. to quantify this difference we again calculate a relative bias.

**Question:** Are the results robust for different specifications of the prior on the residual variance?

Parameters | Estimate with \(\in \sim IG(.01, .01)\) | Estimate with \(\in \sim IG(.5, .5)\) | Bias |
---|---|---|---|

Intercept | |||

Age | |||

Age2 | |||

Residual variance |

Again, we specify the gamma distribution instead of the inverse gamma distribution, because the prior is placed on the precion instead of the variance.

```
model.regression.difIG <- '#the regression model
diff ~ prior("normal(0.8, 2.24)")*age + prior("normal(0.8, 2.24)")*age2
#show that dependent variable has variance
diff ~~ prior("gamma(.01, .01)")*diff
#we want to have an intercept
diff ~ prior("normal(-35, 4.47)")*1'
fit.bayes.difIG <- blavaan(model = model.regression.difIG, data = dataPHD,
n.chains = 3, burnin = 2000, sample = 5000,
target = "stan", test = "none", seed = 123,
bcontrol = list(cores = 4))
```

`summary(fit.bayes.difIG)`

```
## blavaan (0.3-7) results of 5000 samples after 2000 adapt/burnin iterations
##
## Number of observations 333
##
## Number of missing patterns 1
##
## Statistic
## Value
##
## Regressions:
## Estimate Post.SD HPD.025 HPD.975 PSRF
## diff ~
## age 2.145 0.210 1.735 2.552 1.000
## age2 -0.021 0.003 -0.026 -0.015 1.000
## Prior
##
## normal(0.8,2.24)
## normal(0.8,2.24)
##
## Intercepts:
## Estimate Post.SD HPD.025 HPD.975 PSRF
## .diff -36.231 4.219 -44.415 -28.02 1.000
## Prior
## normal(-35,4.47)
##
## Variances:
## Estimate Post.SD HPD.025 HPD.975 PSRF
## .diff 199.596 15.818 170.897 233.253 1.000
## Prior
## gamma(.01,.01)
```

Parameters | Estimate with \(\in \sim IG(.01, .01)\) | Estimate with \(\in \sim IG(.5, .5)\) | Bias |
---|---|---|---|

Intercept | -36.231 | -36.188 | \(100\cdot \frac{-36.231–36.188 }{-36.188} = 0.12\%\) |

Age | 2.145 | 2.142 | \(100\cdot \frac{2.145-2.142 }{2.142} = 0.14\%\) |

Age2 | -0.021 | -0.021 | \(100\cdot \frac{-0.021–0.021 }{-0.021} = 0\%\) |

Residual variance | 199.596 | 198.712 | \(100\cdot \frac{199.596-198.712 }{198.712} = 0.44\%\) |

*Yes, the results are robust, because there is only a really small amount of relative bias for the residual variance.*

### 8. Is there a notable effect of the prior when compared with non-informative priors?

The default Blavaan priors are non-informative, so we can run the analysis without any specified priors and compare them to the model we have run thus far, using the relative bias, to see if there is a large influence of the priors.

**Question**: What is your conclusion about the influence of the priors on the posterior results?

Parameters | Estimates with default priors | Estimate with informative priors | Bias |
---|---|---|---|

Intercept | |||

Age | |||

Age2 | |||

Residual variance |

```
model.regression.defaultprior <- '#the regression model
diff ~ age + age2
#show that dependent variable has variance
diff ~~ diff # if you dont specify the prior it will use the default prior.
#we want to have an intercept
diff ~ 1'
fit.bayes.defaultpriors <- blavaan(model = model.regression.defaultprior, data = dataPHD,
n.chains = 3, burnin = 1000, sample = 4000,
target = "stan", test = "none", seed = 123,
bcontrol = list(cores = 4))
```

`summary(fit.bayes.defaultpriors)`

```
## blavaan (0.3-7) results of 4000 samples after 1000 adapt/burnin iterations
##
## Number of observations 333
##
## Number of missing patterns 1
##
## Statistic
## Value
##
## Regressions:
## Estimate Post.SD HPD.025 HPD.975 PSRF
## diff ~
## age 1.316 0.373 0.561 2.041 1.001
## age2 -0.012 0.004 -0.02 -0.004 1.002
## Prior
##
## normal(0,10)
## normal(0,10)
##
## Intercepts:
## Estimate Post.SD HPD.025 HPD.975 PSRF
## .diff -18.638 7.785 -33.809 -2.821 1.001
## Prior
## normal(0,10)
##
## Variances:
## Estimate Post.SD HPD.025 HPD.975 PSRF
## .diff 196.964 15.420 169.441 229.35 1.001
## Prior
## gamma(1,.5)[sd]
```

Parameters | Estimates with default priors | Estimate with informative priors | Bias |
---|---|---|---|

Intercept | -18.638 | -36.188 | \(100\cdot \frac{-18.638–36.188 }{-36.188} = -48.5\%\) |

Age | 1.316 | 2.142 | \(100\cdot \frac{1.316-2.142 }{2.142} = -38.56\%\) |

Age2 | -0.012 | -0.021 | \(100\cdot \frac{-0.012–0.021 }{-0.021} = -42.86\%\) |

Residual variance | 196.964 | 198.712 | \(100\cdot \frac{196.964-198.712 }{198.712} = -0.88\%\) |

*The informative priors have quite some influence (up to 50%) on the posterior results of the regression coefficients. This is not a bad thing, just important to keep in mind.*

**Question**: Which results do you use to draw conclusion on?

*This really depends on where the priors come from. If for example your informative priors come from a reliable source, you should use them. The most important thing is that you choose your priors accurately, and have good arguments to use them. If not, you shouldn’t use really informative priors and use the results based on the non-informative priors.*

### 9. Are the results stable from a sensitivity analysis?

If you still have time left, you can adjust the hyperparameters of the priors upward and downward and re-estimating the model with these varied priors to check for robustness.

From the original paper:

“If informative or weakly-informative priors are used, then we suggest running a sensitivity analysis of these priors. When subjective priors are in place, then there might be a discrepancy between results using different subjective prior settings. A sensitivity analysis for priors would entail adjusting the entire prior distribution (i.e., using a completely different prior distribution than before) or adjusting hyperparameters upward and downward and re-estimating the model with these varied priors. Several different hyperparameter specifications can be made in a sensitivity analysis, and results obtained will point toward the impact of small fluctuations in hyperparameter values. […] The purpose of this sensitivity analysis is to assess how much of an impact the location of the mean hyperparameter for the prior has on the posterior. […] Upon receiving results from the sensitivity analysis, assess the impact that fluctuations in the hyperparameter values have on the substantive conclusions. Results may be stable across the sensitivity analysis, or they may be highly instable based on substantive conclusions. Whatever the finding, this information is important to report in the results and discussion sections of a paper. We should also reiterate here that original priors should not be modified, despite the results obtained.”

For more information on this topic, please also refer to this paper.

### 10. Is the Bayesian way of interpreting and reporting model results used?

For a summary on how to interpret and report models, please refer to https://www.rensvandeschoot.com/bayesian-analyses-where-to-start-and-what-to-report/

`summary(fit.bayes)`

```
## blavaan (0.3-7) results of 5000 samples after 2000 adapt/burnin iterations
##
## Number of observations 333
##
## Number of missing patterns 1
##
## Statistic
## Value
##
## Regressions:
## Estimate Post.SD HPD.025 HPD.975 PSRF
## diff ~
## age 2.142 0.210 1.726 2.553 1.001
## age2 -0.021 0.003 -0.026 -0.015 1.001
## Prior
##
## normal(0.8,2.24)
## normal(0,3.16)
##
## Intercepts:
## Estimate Post.SD HPD.025 HPD.975 PSRF
## .diff -36.188 4.203 -44.431 -27.916 1.001
## Prior
## normal(-35,4.47)
##
## Variances:
## Estimate Post.SD HPD.025 HPD.975 PSRF
## .diff 198.712 15.528 170.354 231.461 1.000
## Prior
## gamma(.5,.5)
```

In the current model we see that:

- The estimate for the intercept is -36.188 [-44.431 ; -27.916 ]
- The estimate for the effect of \(age\) is 2.142 [1.726 ; 2.553 ]
- The estimate for the effect of \(age^2\) is -0.021 [-0.026 ; -0.015 ]

We can see that none of 95% Posterior HPD Intervals for these effects include zero, which means we are can be quite certain that all of the effects are different from 0.

Remember how we plotted the relation between delay and years based on the prior information? Now, do the same with the posterior estimates.

```
years <- 20:80
delay <- -35 + 2.13*years - 0.02*years^2
plot(years, delay, type= "l")
```

**References**

Depaoli, S., & Van de Schoot, R. (2017). Improving transparency and replication in Bayesian statistics: The WAMBS-Checklist. *Psychological Methods*, *22*(2), 240.

Link, W. A., & Eaton, M. J. (2012). On thinning of chains in MCMC. *Methods in ecology and evolution*, *3*(1), 112-115.

van Erp, S., Mulder, J., & Oberski, D. L. (2017). Prior sensitivity analysis in default Bayesian structural equation modeling.

Van de Schoot, R., & Depaoli, S. (2014). Bayesian analyses: Where to start and what to report. *European Health Psychologist*, *16*(2), 75-84.
